IP66 Weatherproof Outdoor Double Socket with RCD – 13A 250V – Pre-Wired Extension Cable

Product Overview

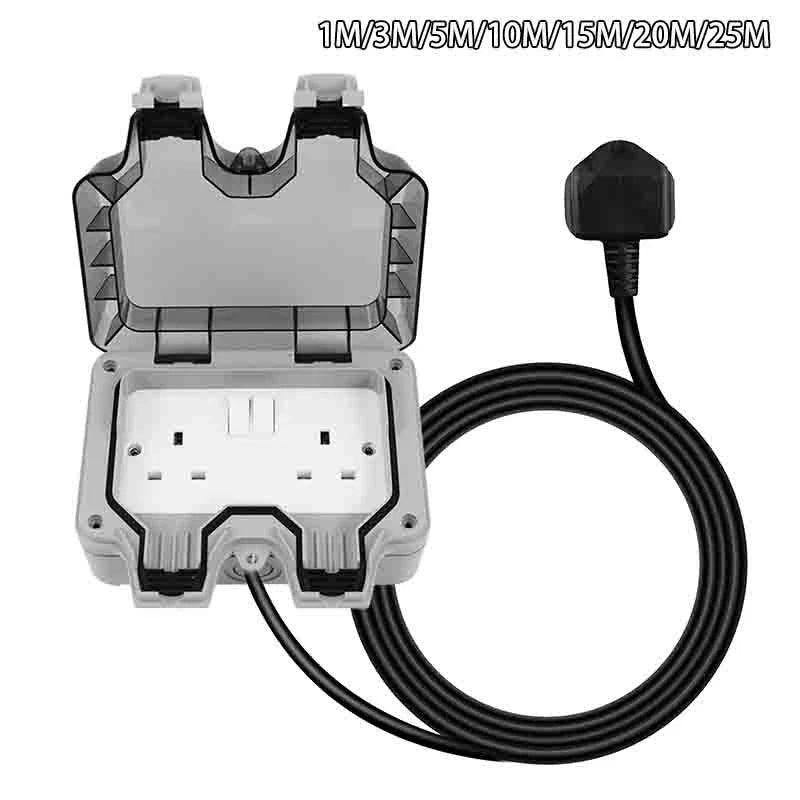

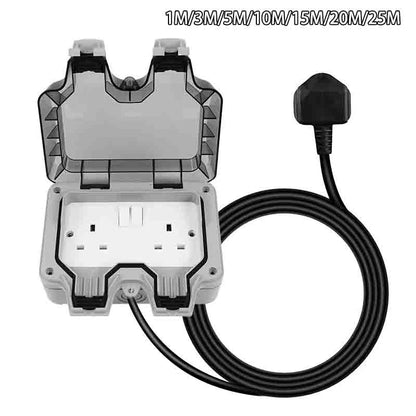

Protect your outdoor electrical connections with this IP66 weatherproof outdoor double socket, designed for reliable power in gardens, garages, patios, workshops and other demanding environments.

The heavy-duty socket features a sealed weatherproof enclosure, transparent protective cover, integrated silicone gasket and locking mechanism, helping protect the electrical connections from dust, water and accidental contact.

The socket is supplied pre-wired with an extension cable, making installation more convenient and reducing the need to run a separate extension lead from indoors.

Key Features

IP66 Waterproof & Dustproof Protection

The robust sealed housing provides IP66-rated protection against dust and powerful water jets, making it suitable for outdoor applications. The integrated silicone gasket helps prevent water and moisture from entering the enclosure.

Pre-Wired Extension Cable

The outdoor socket is supplied with the cable already fitted. Available cable lengths include:

• 1 Metre
• 3 Metres
• 5 Metres
• 10 Metres
• 15 Metres
• 20 Metres
• 25 Metres

Simply position the socket where required and route the pre-fitted cable to the appropriate power source. No cable fitting is required on the socket itself.

Lockable Transparent Cover

The clear protective cover allows the sockets to remain visible while providing additional protection. The cover can be secured with a standard padlock (padlock not included), helping prevent unauthorised access.

The secure fastening clips and cover buckle allow the enclosure to be opened and closed conveniently while maintaining protection when a plug is connected.

Heavy-Duty Construction

Made from high-quality PC (polycarbonate) material, the enclosure is designed to provide excellent durability, impact resistance and heat resistance for demanding environments.

13A Double Socket

The dual outdoor socket is rated up to 13A, 250V AC and 3000W, making it suitable for a wide range of compatible electrical equipment.

Ideal for:

• Garden equipment
• Lawn mowers
• Hedge trimmers
• Pressure washers
• Garden tools
• Outdoor lighting
• Workshop equipment
• Garage equipment
• Patio appliances

Built-In 10mA RCD Protection

The socket includes an integrated 10mA RCD (Residual Current Device) designed to provide additional protection against electric shock by rapidly disconnecting the electrical supply when a residual current is detected.

Product Specifications

• Product Type: Weatherproof Outdoor Double Socket
• Socket Type: UK Double Socket
• Protection Rating: IP66
• Rated Voltage: 250V AC
• Frequency: 50Hz
• Rated Current: 13A
• Maximum Power: Up to 3000W
• RCD: Built-in 10mA RCD
• Material: High-Quality PC
• Cover: Transparent Protective Cover
• Cover: Lockable
• Cable: Pre-Wired / Pre-Installed
• Cable Length Options: 1m / 3m / 5m / 10m / 15m / 20m / 25m
• Standard: BS 1363-1
• Suitable For: Indoor & Outdoor Applications

Suitable Applications

This IP66 outdoor electrical socket is ideal for providing a convenient fixed power point in:

• Gardens
• Patios
• Garages
• Workshops
• Sheds
• Driveways
• Commercial outdoor areas
• Parks and other suitable outdoor locations

What's Included

• 1 × IP66 Weatherproof Outdoor Double Socket
• 1 × Pre-Installed Extension Cable
• Mounting Hardware

Please select the required cable length when ordering.

Installation & Wiring Information

The socket is supplied pre-wired, so the internal wiring does not need to be fitted by the customer.

For reference, standard UK wiring colours are:

• Brown → Live (L)
• Blue → Neutral (N)
• Green/Yellow → Earth (E)

The cable should be securely anchored using the built-in cord grip to provide strain relief.

Important: Electrical installation should be carried out by a suitably qualified person where required. Always isolate the electrical supply before carrying out any electrical work and follow applicable UK electrical regulations.

Fuse Information

Where a BS 1362 plug/fuse is applicable, use an appropriate ASTA-approved BS 1362 fuse suitable for the connected appliance and cable rating.

Typical ratings include:

• 3A / 5A: Suitable for lower-power appliances where appropriate.
• 13A: Suitable for appliances requiring higher power, up to the permitted rating.

Always select the correct fuse rating according to the appliance, cable and applicable safety requirements.
